Picture Gallery - HVAC and Wiring 1

Return to gallery

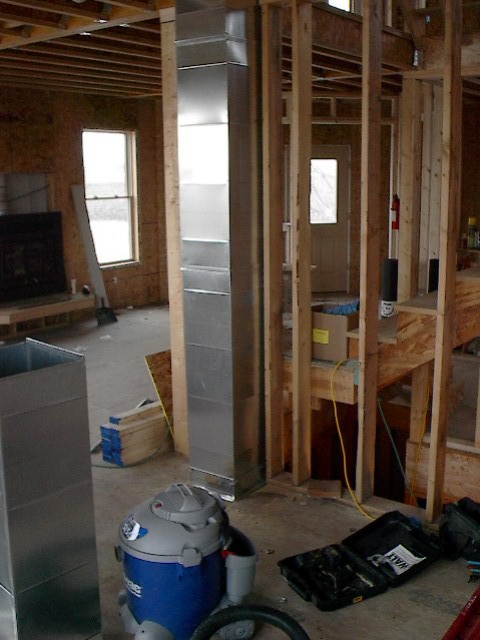

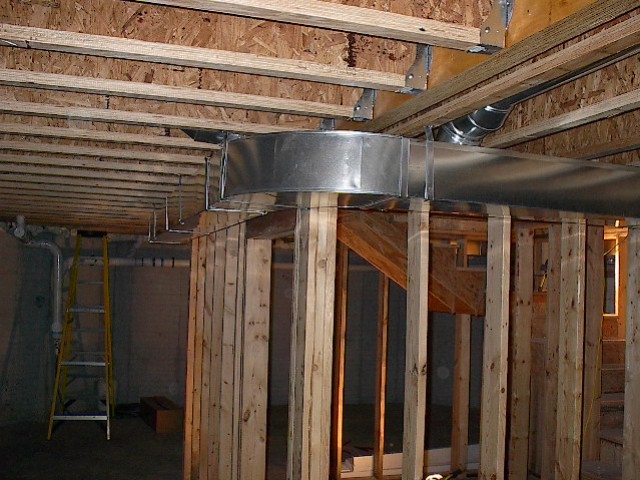

Supply duct (before framing in)

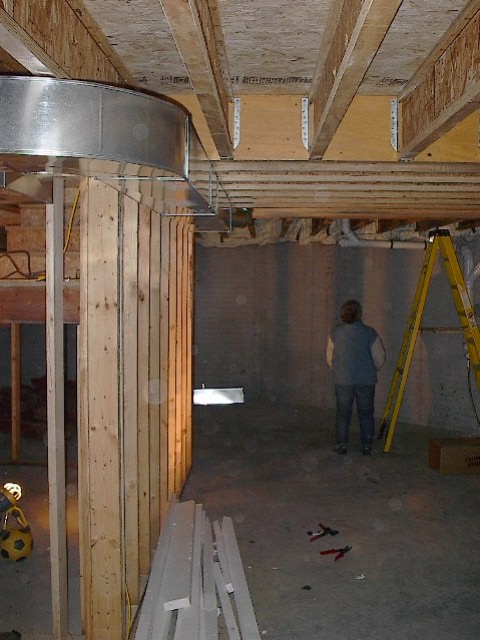

Basement duct work
John from KBI hard at it

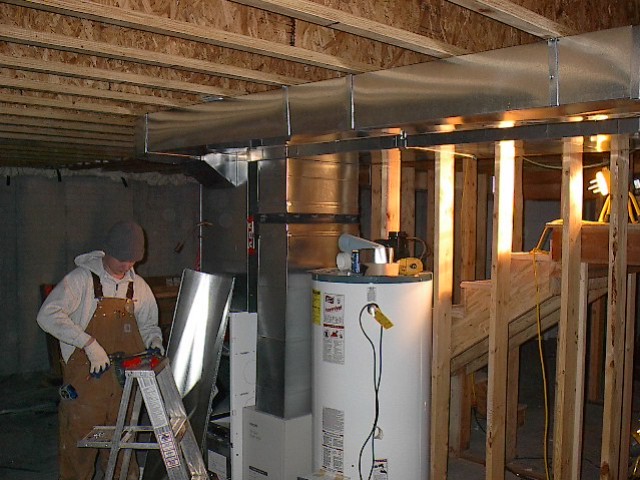

More duct work; Lisa inspecting plumbing

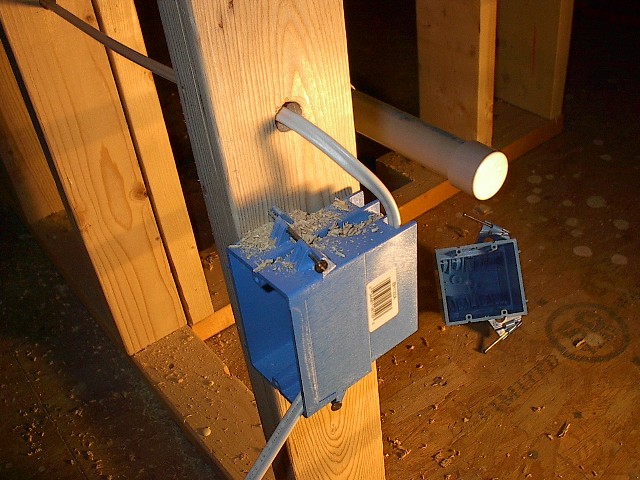

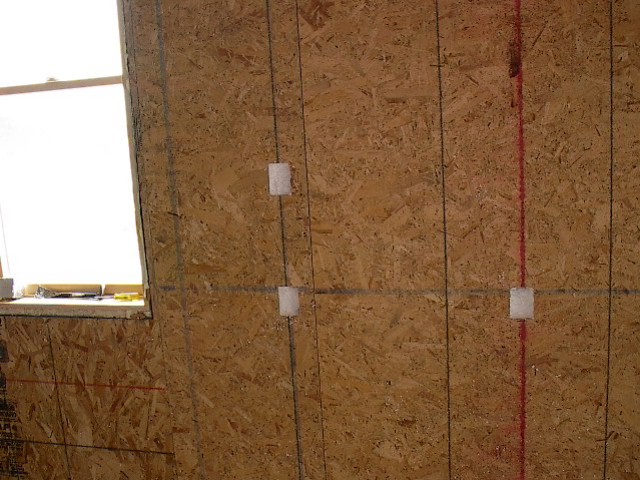

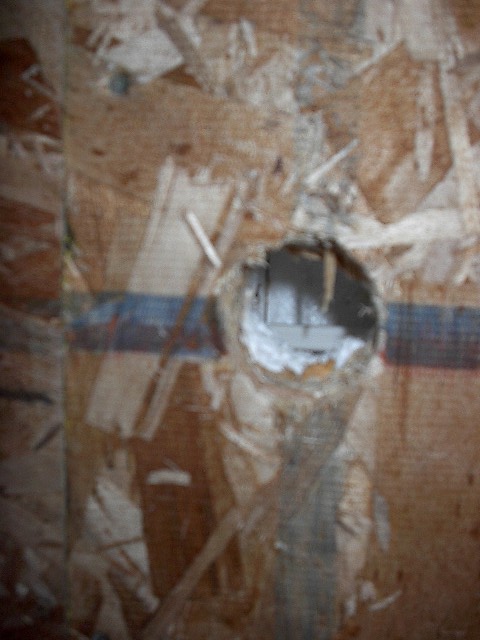

Some of our 'custom' cut electric box holes

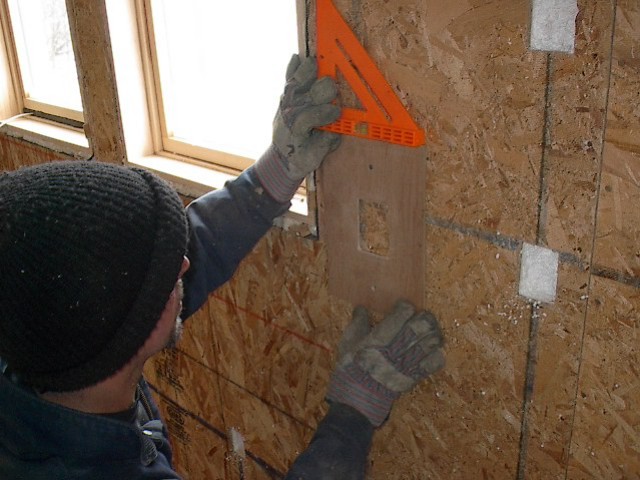

Lining up template for a box hole

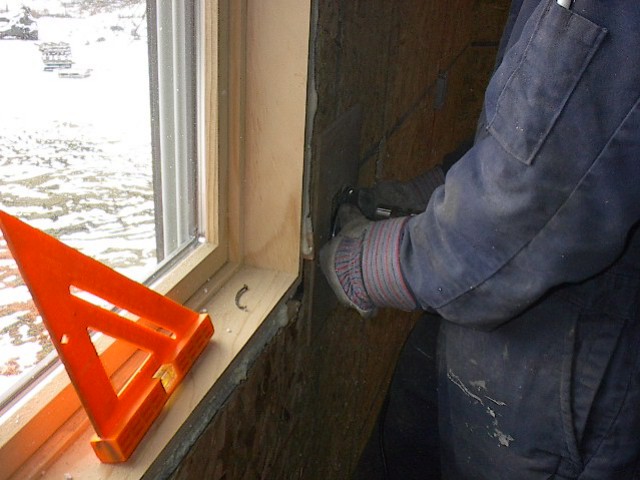

Cutting box hole with router

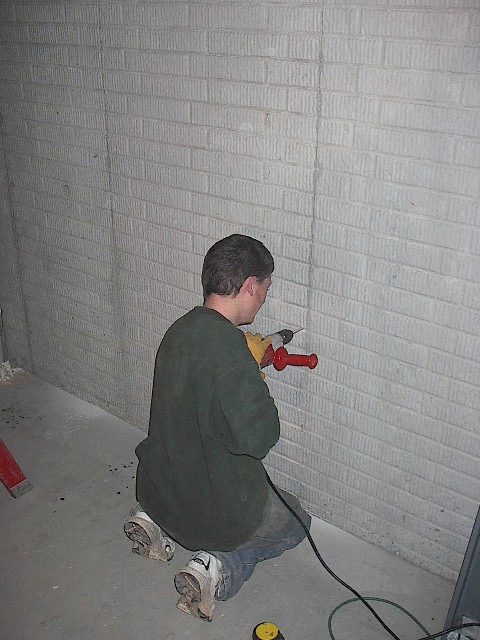

Mike drilling hole for mounting panel

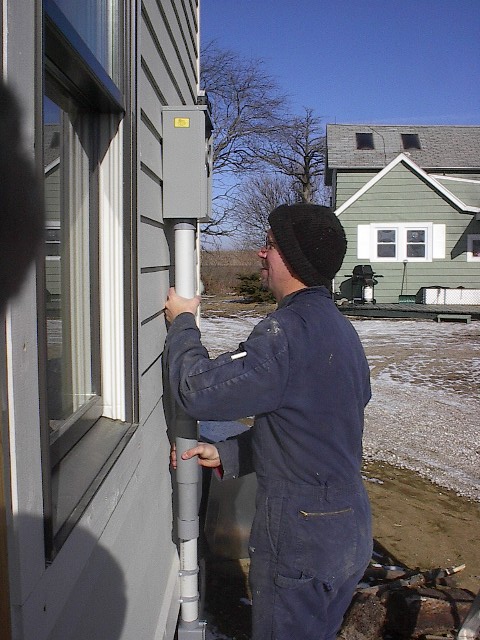

Mark gluing incoming conduit into meter box
Mark feeding a wire down a panel chase
Mike pulling a wire through a chase

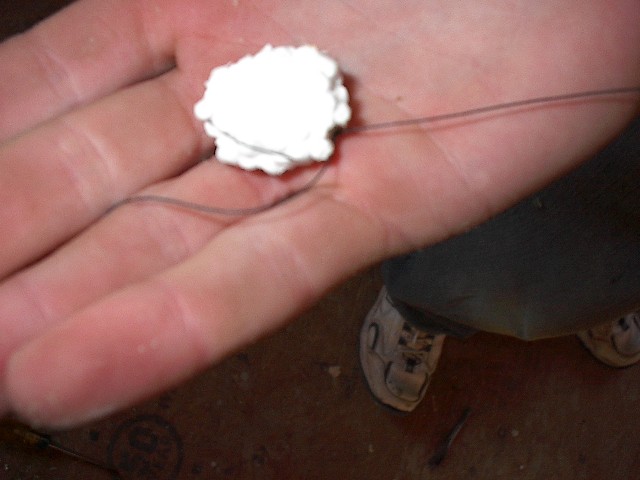

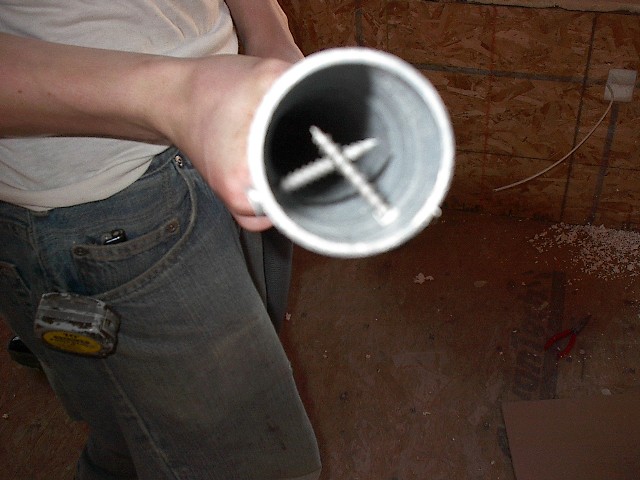

Close up of the styrofoam ball
on a thread we sucked through
the chases with a vacuum when
we couldn't just push the wire
Vacuum cleaner hose we sucked
with. The two screws kept us
from sucking our styro ball into
the hose.

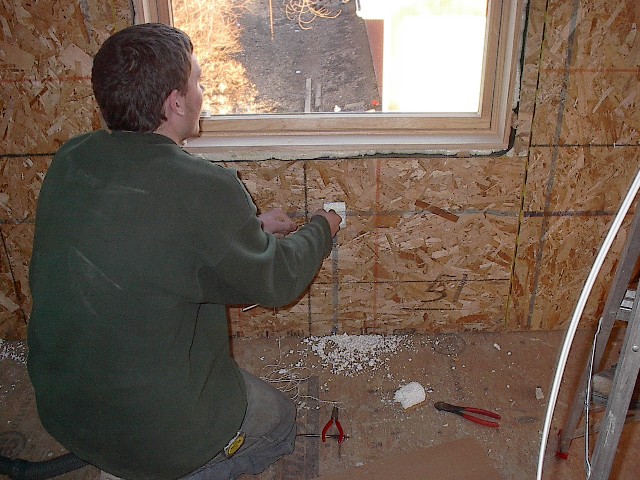

Mike pulling more wire

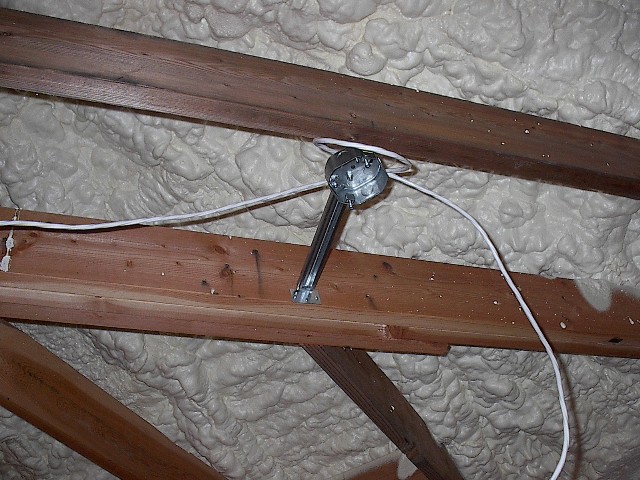

A ceiling fan box (wires just loose)
A switch box (wires just loose)

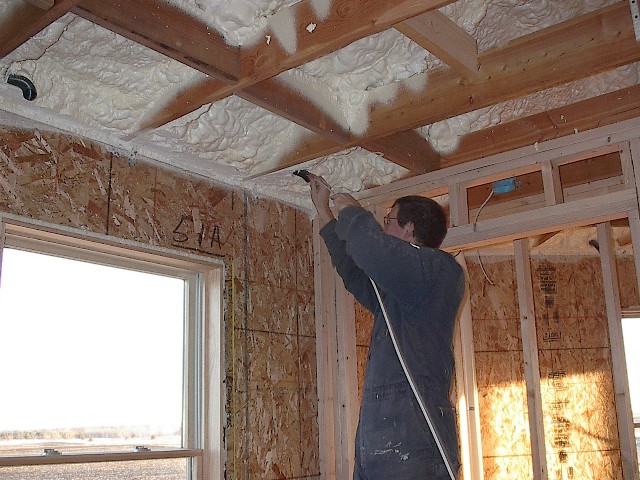

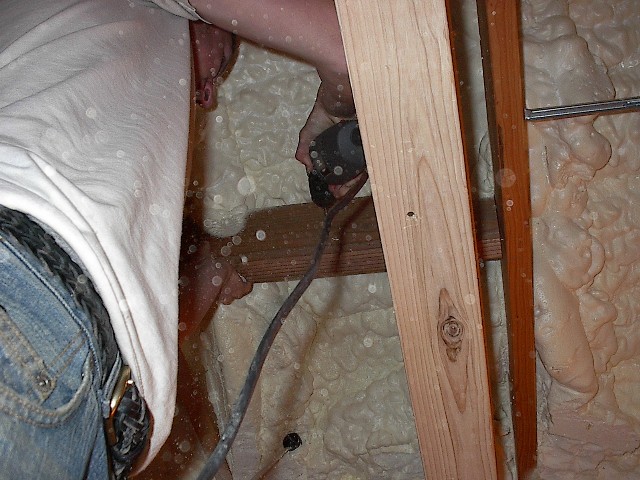

Mike drilling wire holes
Outlet box (only one set of
wires stripped of casing)
(MS1)
Transition from panel wall to
stud wall (MS2)

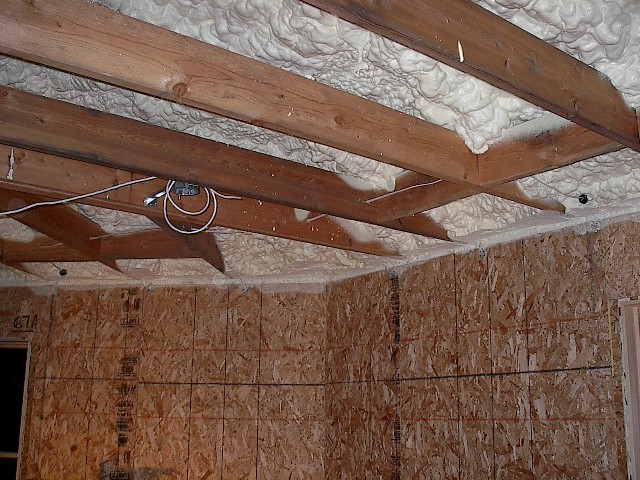

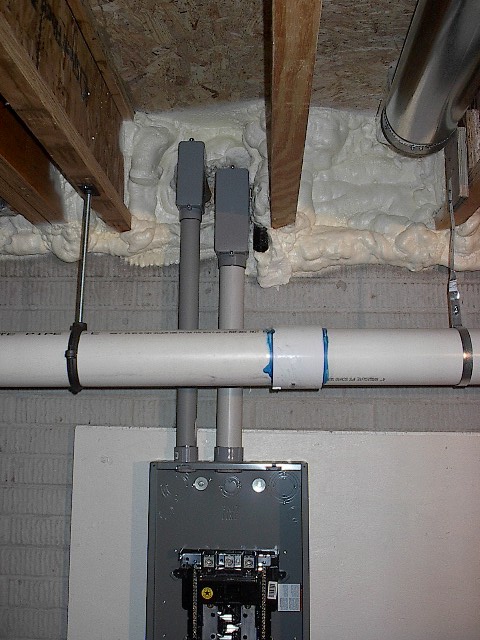

Transition from panel wall to
ceiling joists through conduit
and foam (MS3)

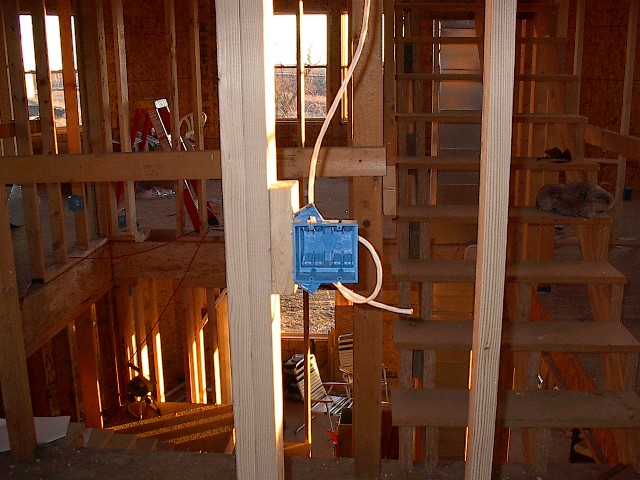

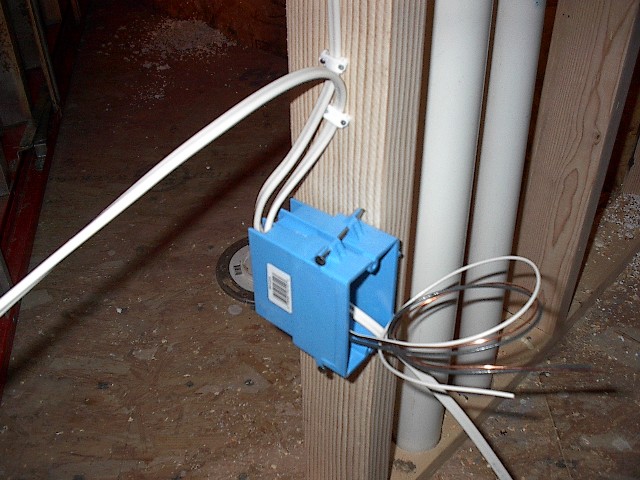

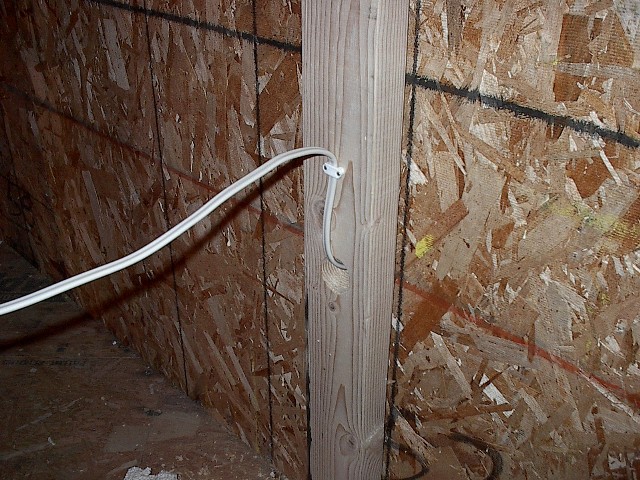

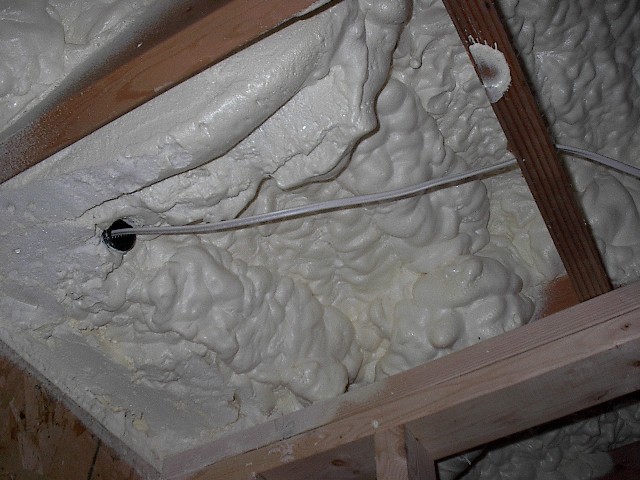

Wire coming through stud and
into box (MS4)
Just more wiring in Mike's room

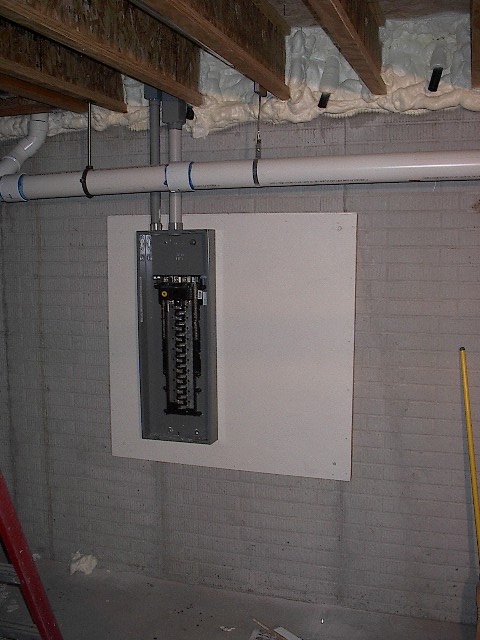

Our electrical panel (MS5)
Conduit detail of our panel (MS6)

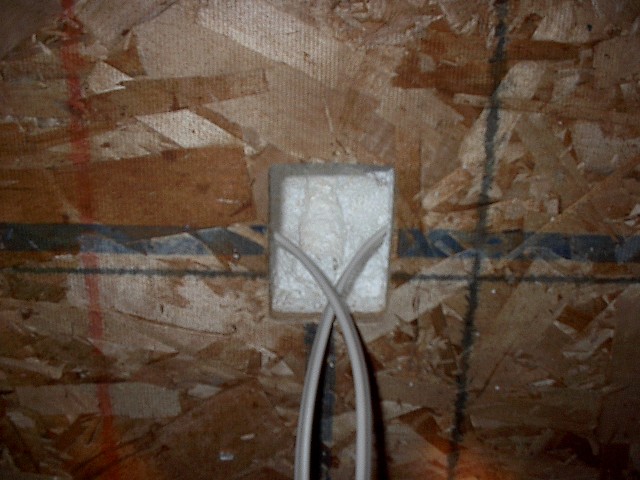

A typical panel box opening
with two 14/2 wires. The wire
chases are centered in wall panel.
(MS7)
Close up of location where
we fed a wire down a vertical
chase, then across a horizontal.
You can see a wiring running
through the horizontal chase at
the bottom. (MS8)

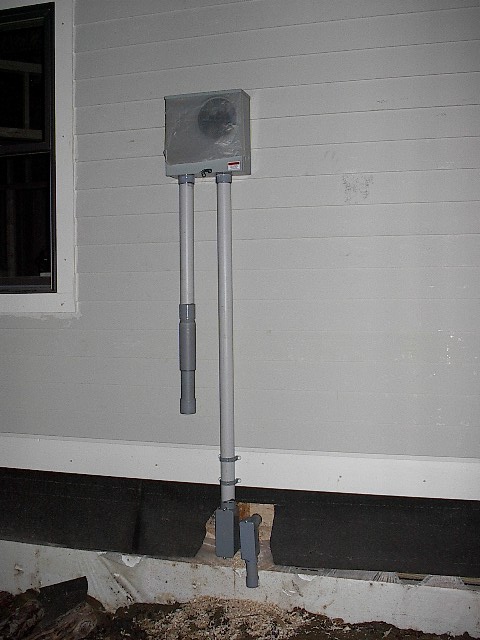

Our meter box setup.
Left-most conduit is for incoming
service; middle conduit is for
meter to our panel; little
conduit at bottom right is for
the line to the garage (stubbed off
for now) (MS9)
